Custom Formwork Solutions
SPECIALISED FORMWORK APPLICATIONS
Explore our Custom solutions

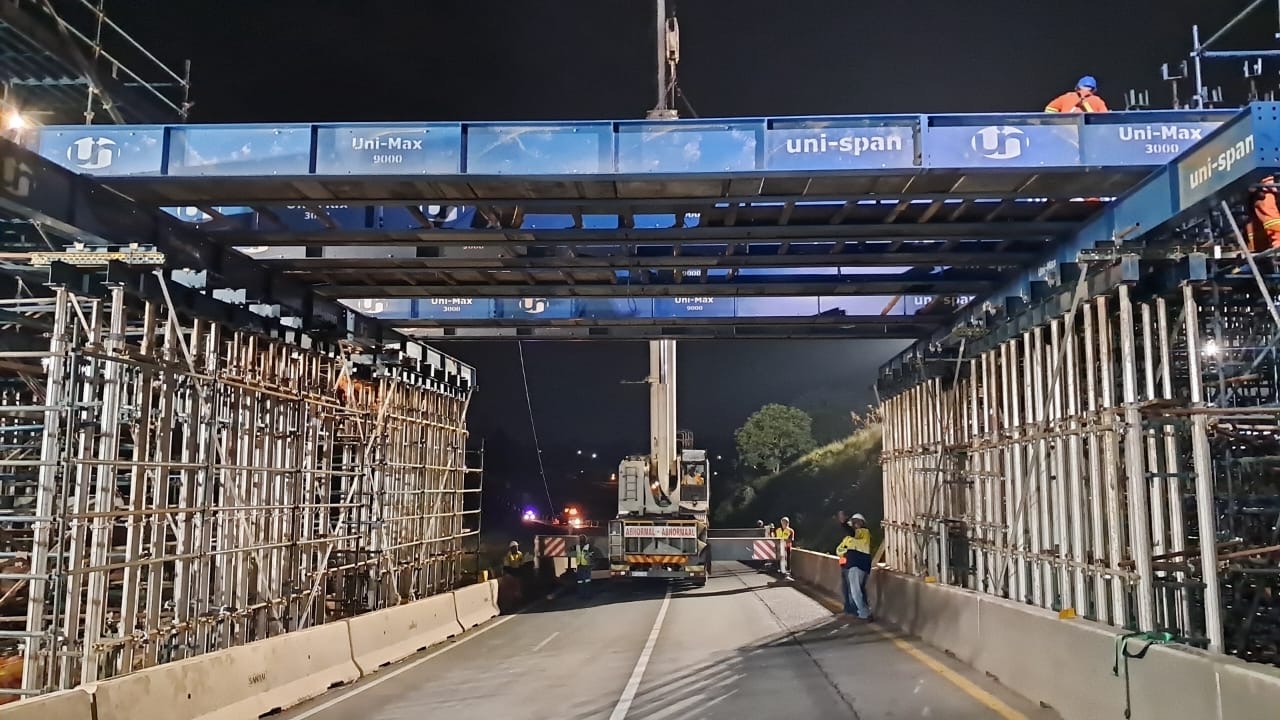

UNI-MAX
Uni-Max Beams are specialised steel beams designed to support heavy loads in critical construction applications. Ideal for spanning over bridges, roads, or river openings, Uni-Max provides robust and reliable formwork solutions where conventional systems won’t suffice.
These beams offer strength, versatility, and efficiency on complex projects requiring long-span and heavy-load support.
Key FEATURES
- Heavy-Duty Support | Supports significant loads for critical applications like bridge porting and long-span decking.
- Versatile Span Options | Beam sizes range from 0.6m to 9m, with flexible configurations for tailored support.
- Wide Weight Range | From 18kg to 968kg depending on the size—ensuring structural integrity across various projects.
- Rental Flexibility | Beams are available for hire, making them a cost-effective solution for temporary needs.
- Efficient Crane Assembly | Designed for crane-assisted erection and dismantling to save time and labour.
- Reduced Ground Shoring | Engineered to minimise the need for extensive ground support systems.
- Integrated Work Platforms | Capable of supporting stable working platforms during construction.
- Secure and Simple Connections | Features bolted joints and standard brace frames for enhanced stability.

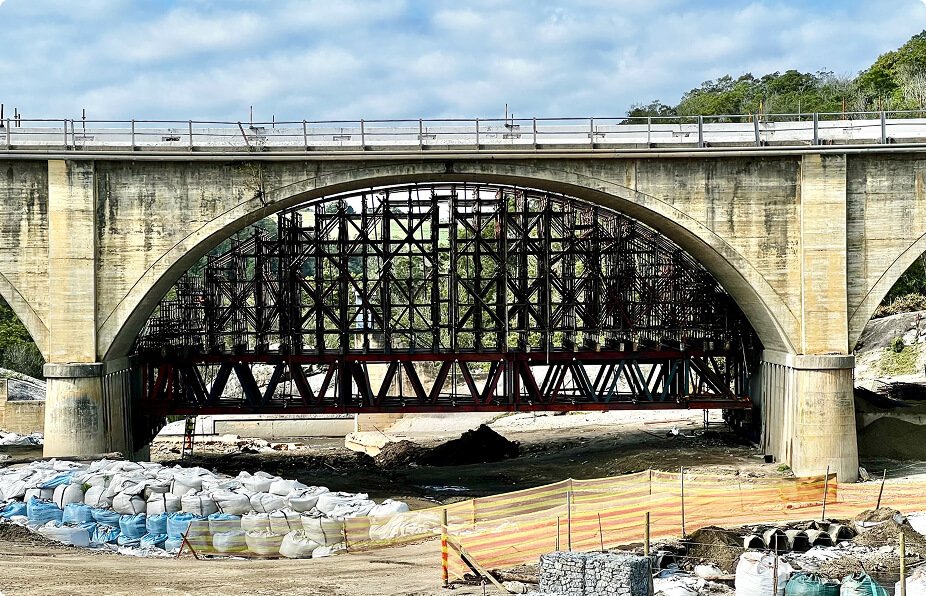

UNI-GIRDER
Uni-Girders are specialized truss systems engineered to span large gaps and support heavy concrete structures where standard systems, like Uni-Stage, are not viable, such as over rivers, railways, and other hard-to-access locations.
Designed for strength, modularity, and ease of on-site integration, Uni-Girders provide a dependable solution for complex infrastructure projects.
Key FEATURES
- Large Span Capability | Ideal for bridging expansive gaps where traditional support systems can’t reach.
- Flexible Configurations | Modular design allows for tailored spacing and alignment across varied project requirements.
- Custom Sizes Available | Multiple standard lengths (1270mm, 2650mm, 6550mm) including reinforced options to suit unique construction needs.
- Integrated Work Platform | Built-in access platform supports safe and efficient shoring and decking during construction.
- Secure Bolted Connections | Enables seamless assembly of extended spans while maintaining structural strength.
- Rental Options | Available for hire, making it a cost-effective choice for specialised, temporary applications.
- Robust Dimensions | With a depth of 2300mm and width of 413mm, Uni-Girders offer high load performance in a compact footprint.
